| 用途與簡介： |
本機適用於各種行業的圓型瓶及圓狀物的貼標。機器採用伺服電機控制，操作屏，貼標精準，誤差小、效率高。機器可加安裝故障和數值報警裝置，與打印機聯接可以輸出班次生產記錄，實現自動監測生產狀況。
| 桌面型技術參數： |
| Model | ZX-150PA (氣動) | ZX-130 (電動) |
| Machine dimensions(mm) | 700(L) × 450(w) × 450(H) 30kgs | |
| Accuracy | +/-1mm | +/-1mm |
| Label speed | 20-40 PCS/MIN | 20-40 PCS/MIN |
| Bottle range | 18-100mm (Accept Special Size) | 18-100mm (Accept Special Size) |
| Label length | 20-350mm | 10-350mm |
| Label width | 20-150mm | 10-150mm |
| Inner diameter of Label roll | 76mm | 76mm |
| Outer diameter of label roll | 300mm | 300mm |
| Voltage / Phase | 220v / 50hz | 220v / 50hz |
| Watts | 120 W | 100 W |
 |
 |
| 全自動型技術參數： |

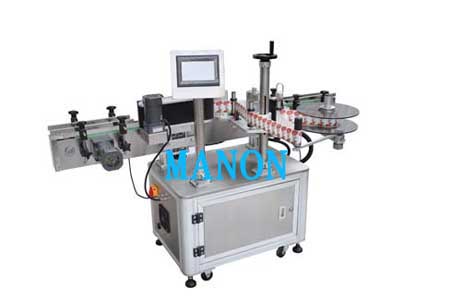

| Model | ZX-130 (全自動) |
| Machine dimensions(mm) | 2000(L) × 700(w) × 1400(H) |
| Accuracy | +/-1mm |
| Label speed | 0-25m/min |
| Bottle range | 18-100mm (Accept Special Size) |
| Label length | 10-120mm |
| Label width | 10-80mm |
| Inner diameter of Label roll | 76mm |
| Outer diameter of label roll | 300mm |
| Voltage / Phase | 220v / 50hz |
| Watts | 0.8kw |
 |
|
