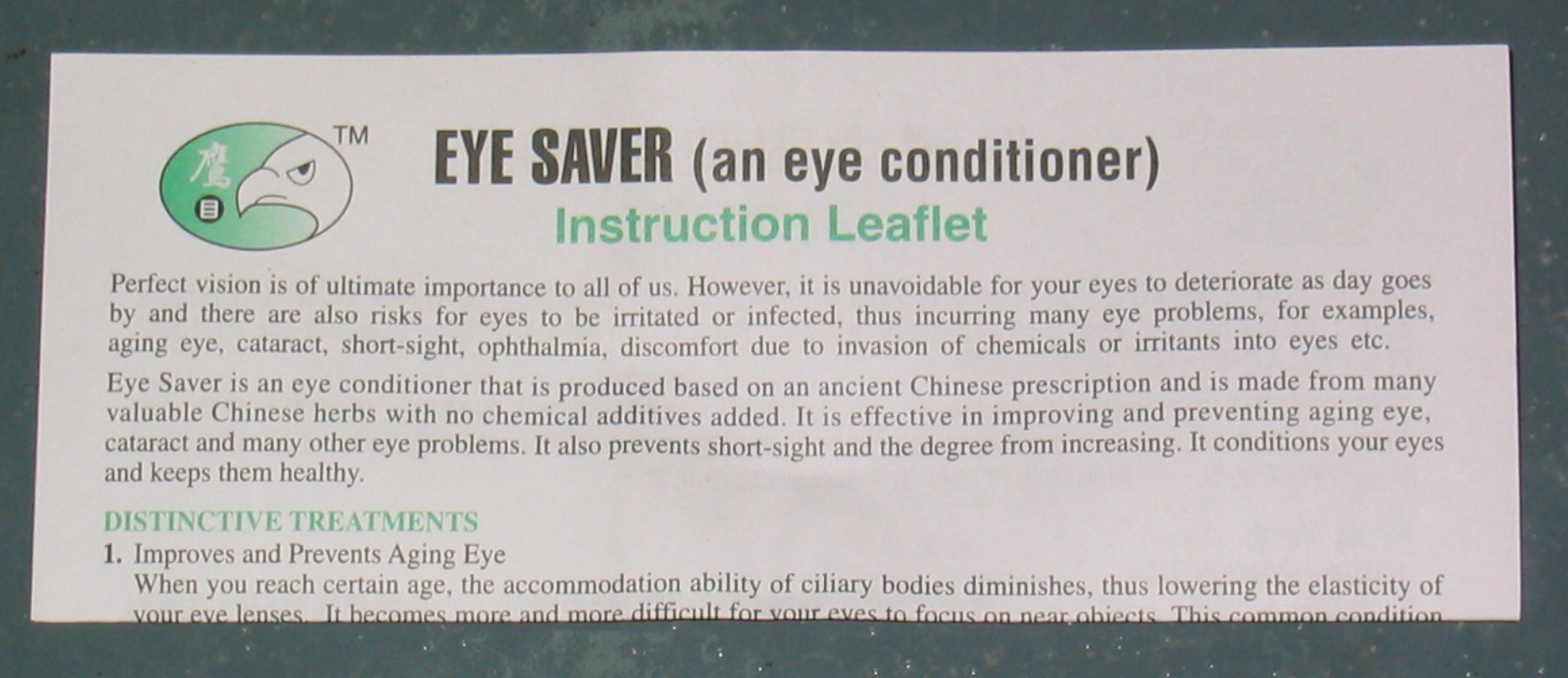

1) folding booklet
2) stamping number on the box

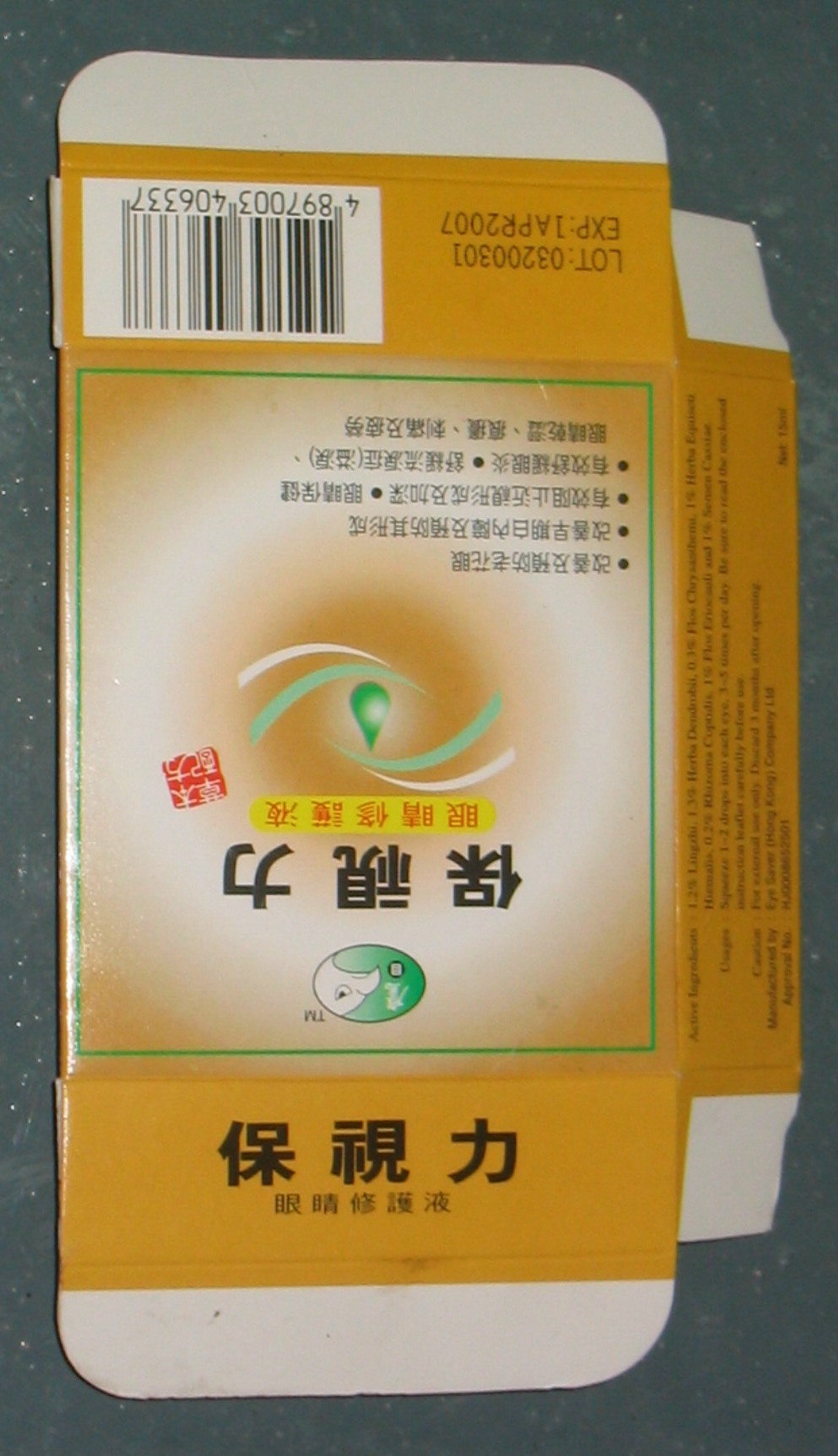

3) floding box
4) inserting slap and booklet

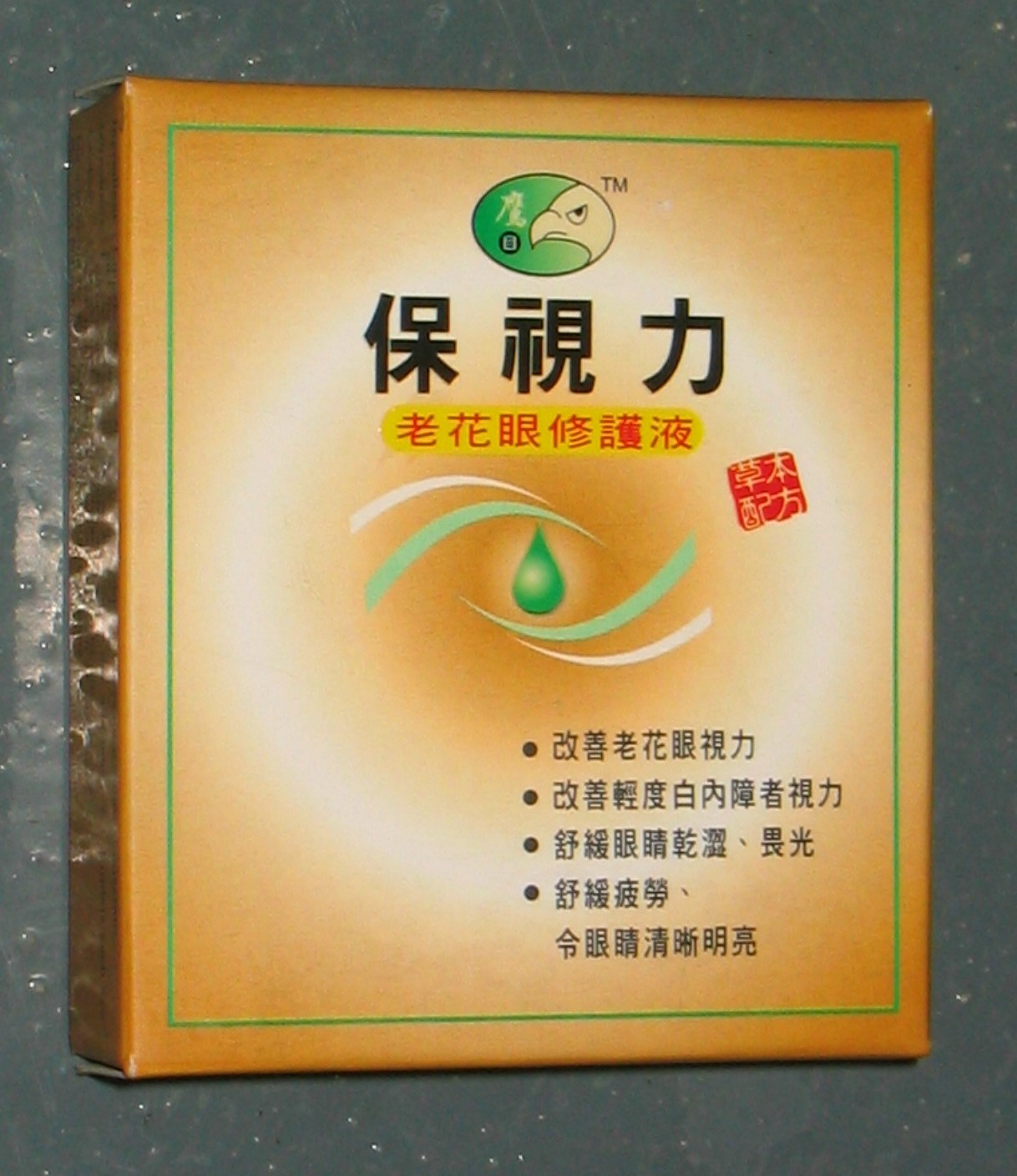

5) finish installing box
This machine can put the slap and the direction booklet into case together to
finish package process.
Programming PLC as well as photoelectric supervision
for the whole process, frequency governor, man-machine board, if sonething unexpected
happens during its working, it will stop automatically and display the reason,
so that the trouble can be eliminated in time.
| Model |
M-800 |
| Dimensions |
L(950-1500)mm ¡Ñ W1050mm ¡Ñ H1500mm |
| Weight |
750kgs |
| Size of case |
L(70-120mm) ¡Ñ W(30-70mm) ¡Ñ H(10-50mm) |
| size of booklet |
L(100-240mm) W(80-160mm) T(0.05-0.12mm) |
| Output |
10-60 pcs/min |
| Electrical |
Voltage------220v 50Hzsingle phase |
| Voltage |
three phase A.C 380v |
| Power |
1kw |
